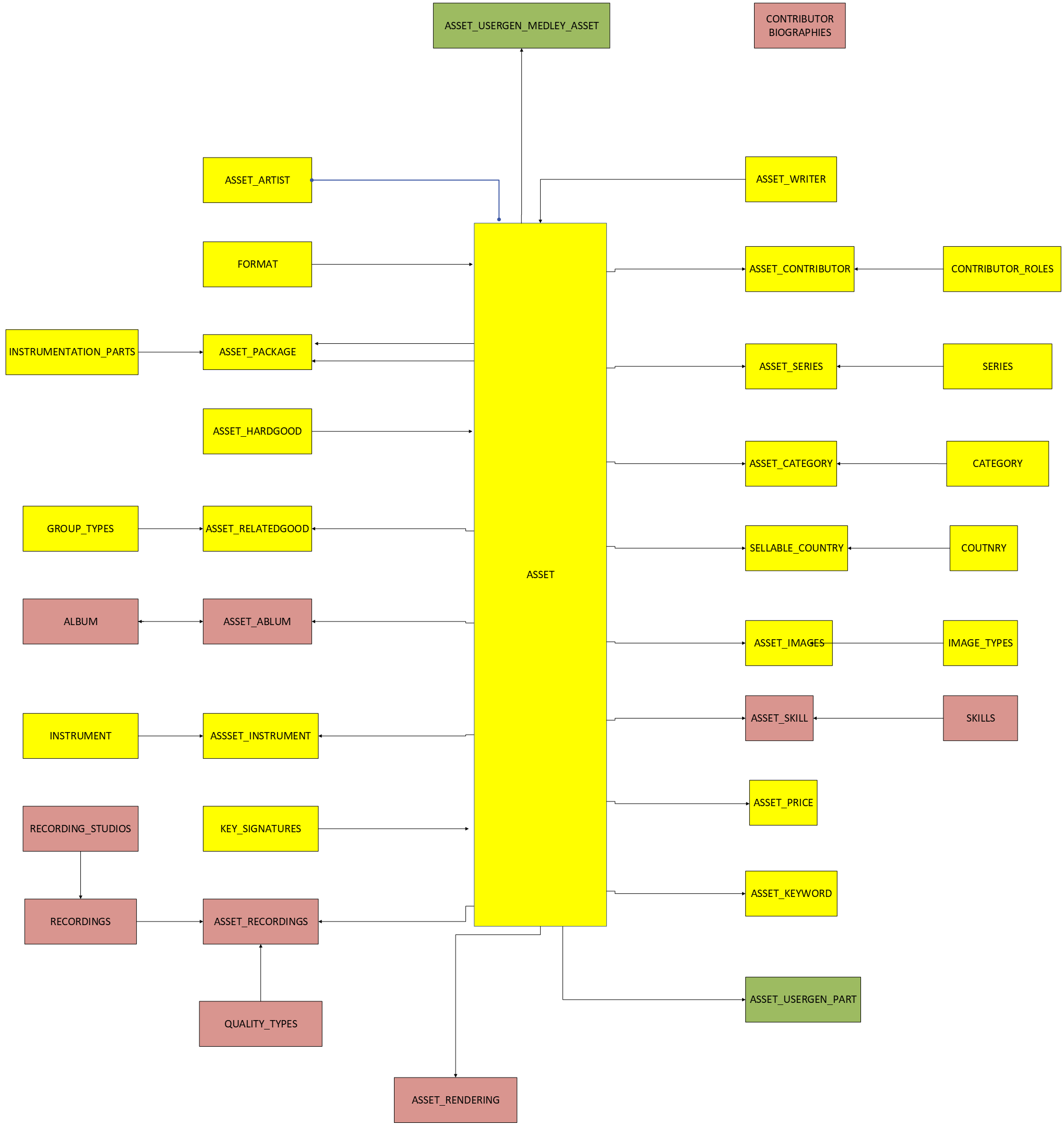

Data Map
The data returned from Vendor Admin and the AssetMetadataRequest conforms to the following conceptual data model. Not all
data is provided to all vendors. Data entities noted in red below are only provided to vendors with access to Hal Leonard's recording assets.
Data entities noted in green below are only provided to vendors with access to Hal Leonard's UserGen assets.
When you request DAM asset metadata in CSV (comma separated) or TAB (tab-delimited) format, several files will be returned to you within a single archive file. If you use only the XML data format, you can the use the file organization to set up your own database. Note that some data is only provided to vendors with access to Hal Leonard's recording assets.
The files returned in the archive are:
| File Name | Description |
|---|---|
| ASSET | A digital sellable good. An asset may be a physical asset, which may be sold individually, or a collection of assets, which may be sold as a group, such as a digital folio. See ASSET_PACKAGE. |
| ALBUMS | Recording Vendors Only - The catalog albums to which an asset may belong. |
| ASSET_ALBUM | Recording Vendors Only - The albums to which an asset belongs. |
| ASSET_CATEGORY | The categories to which an asset belongs. |
| ASSET_CONTRIBUTOR | The person(s) or group associated with the asset, including the "role" played, for example "Artist", "Composer", "Author", etc. |
| ASSET_HARDGOOD | The Hal Leonard SKU of related hard good products, such as folios or individual sheets, that contain the asset. The ASSET_HARDGOOD file has been deprecated and replaced with the ASSET_RELATEDGOOD file. The ASSET_HARDGOOD file is, however, still provided for backwards compatibility. |
| ASSET_IMAGES | The file names of static images related to an asset. This includes preview pages, and cover images of varying sizes. See IMAGE_TYPES |
| ASSET_INSTRUMENT | The instrument(s) most closely associated with an asset. |
| ASSET_KEYWORD | Specialized keywords to make an asset more searchable. These keywords are not intrinsic to an asset's title, sub-title, description, or any other natural data that describes the asset. |
| ASSET_PACKAGE | This file describes the combinations of assets, in parent-child relationships, that may be sold collectively as a single asset, for example as a digital folio. |
| ASSET_PRICE | This file identifies the price of the asset. Price is split out into its own file to accommodate the possibility of assets with multiple prices. For now, all assets only have a single price. The asset's retail price is also included in the ASSET file for backwards compatability. |
| ASSET_RECORDING | Recording Vendors Only - The recordings to which an asset belongs, including the available quality levels. |
| ASSET_RELATEDGOOD | Identifies any sellable goods that are related to the asset. Includes both hardgoods and digital goods. |
| ASSET_RENDERING | This file lists the available renderings for an asset. This information allows you to show customers what type of content is available for a given asset – available in PDF or Scorch, for example. |
| ASSET_SERIES | The Series to which an asset belongs. See SERIES file. |
| ASSET_SKILL | Recording Vendors Only - The list of assets required to achieve a defined proficiency. |
| ASSET_USERGEN_MEDLEY_ASSET | Usergen Vendors Only - The recordings to which an asset belongs, including the available quality levels. |
| ASSET_USERGEN_PART | Usergen Vendors Only - The recordings to which an asset belongs, including the available quality levels. |
| ASSET_WRITER | The writer(s) associated with an asset. Note: The ASSET_WRITER file has been deprecated and replaced with the ASSET_CONTRIBUTOR file. The ASSET_WRITER file is, however, still provided for backwards compatibility. |
| CATEGORY | The catalog of "classifications" to which an asset may belong, for example "Pop", "Rock", etc. These can be used to set up browsing hierarchies in your system. |
| CONTRIBUTOR_BIOGRAPHIES | Recording Vendors Only - A short description of a contributor's background, along with a still image or video clip URL. |
| CONTRIBUTOR_ROLES | The list of allowed roles a person or group may play when associated with an asset, for example "Artist", "Arranger", "Editor", etc. |
| COUNTRY | The current DAM System ISO country list. |
| FORMAT | The catalog of notation formats an asset can have. |
| GROUP_TYPES | The different type of product associations in the system. There are currently three group types: "Hardgood", "Voicing", and "Digital". Each group type is uniquely identified by a "group type" identifier. Group types help define the relationships between items, for example, item "A" may have a "hardgood" relationship to item "B". Item "A" may also have a "voicing" relationship to items "C", "D", and "E". Voicing relationships are typically defined between similar choral products where the only difference is the voicing of the arrangement (SATB, SSA, TTB, etc.) |
| IMAGE_TYPES | The catalog and URL location of the various types of images available for an asset. This data is used in conjunction with the ASSET_IMAGES data. |
| INSTRUMENT | The catalog of all instruments. |
| INSTRUMENTATION_PARTS | The "catalog" of all instrumental parts defined in the DAM system, each uniquely identified by a "part code" identifier. This can be used to determine the instrument part name, for example "Trumpet 1", associated with an asset. |
| KEY_SIGNATURES | The catalog of musical key signatures an asset may have. Only one key signature exists per asset and represents the most common tonal/modal center of the musical work. |
| QUALITY_TYPES | Recording Vendors Only - The list of available bandwidth levels, such as "low", "medium", and "high" in which an asset may be provided. |
| RECORDINGS | Recording Vendors Only - The catalog of recordings to which an asset may belong. |
| RECORDING_STUDIOS | Recording Vendors Only - The catalog of studios at which a recording was made. |
| SELLABLE_COUNTRY | The countries into which a digital asset may be sold. Note that assets that have "world" rights will have no entries in this file. |
| SERIES | "Series" is specific to choral format assets and provides a finer level of product classification for each asset. Each series name is uniquely identified by a series id. Series can be used to facilitate searching and browsing choral products. |
| SKILLS | Recording Vendors Only - A proficiency desired, such as "Finger Picking", or "Slap Bass". |
File Columns and Data Types
The names, data types, and descriptions of the columns in each file are listed below. Note that each file will contain a comma, or tab separated list of column headings as the first record in the file. Be sure to delete this if you do not need it. Columns in bold represent the uniquely identifying attribute(s) for the record.
File: ALBUMS
| Column | Data Type | Comments |
|---|---|---|
| ALBUM_ID | Number(9,0) | The unique identifier of an album |
| ALBUM_NAME | VarChar(320) | The album name. |
| ALBUM_IMAGE_FILE | VarChar(2000) | The file name and URL of an album cover image. |
File: ASSET_ALBUM
| Column | Data Type | Comments |
|---|---|---|
| ASSET_ID | Number(10,0) | The unique identifier of an asset. |
| ALBUM_ID | Number(9,0) | The unique identifier of an album. |
File: ASSET
| Column | Data Type | Comments |
|---|---|---|
| ASSET_ID | Number (10,0) | A number that uniquely identifies each asset. |
| ASSET_TYPE | VarChar(40) | The type of asset, for example: SCORCH, FOLIO, et. |
| FORMAT | VarChar(40) | The short-name format ID. See FORMAT. |
| ASSET_TITLE | VarChar(100) | The title of the song or package. |
| DESCRIPTION | VarChar(4000) | Only non-sheet assets will have a description. See PACKAGE_TYPE column. |
| DATE_ADDED | Char(10) | Format = mm/dd/yyyy. The date that the asset was added to the DAM system. |
| DATE_DELETED | Char(10) | Format = mm/dd/yyyy. The date that the asset was removed from the DAM system. Note that no sales are permitted beyond the date the asset was deleted. |
| PAGE_COUNT | Number(5,0) | The number of pages in the song. |
| RETAIL_PRICE | Number(5,2) | Hal Leonard's suggested retail price for the asset. |
| FILENAME | VarChar(80) | The asset's physical file name. |
| FILETYPE | VarChar(40) | The asset's file type, for example SCORCH. Note that Package assets do not have a file type, since they are simply a collection of other assets. |
| FILESOURCE | VarChar(25) | Indicates whether the asset was created from a "native" notation file, such as a Sibelius or Finale file, or "pdf", if the asset was created from a PDF source. Currently, "native" and "pdf" are the only two possible values. Note that assets created from "pdf" sources require a minimum of Scorch v5 to view the asset. |
| MIME_TYPE | VarChar(80) | The internet media type associated with the asset, for example: "application/x-sibelius-score". |
| FILEURL | VarChar(230) | The URL path and file name to the physical asset. |
| WORLD_RIGHTS | Char(5) | Values = "TRUE" or "FALSE". If "FALSE", the SELLABLE_COUNTRY file will list all the allowed countries in which this asset may be sold. |
| SONG_NUMBER | Number(6,0) | Hal Leonard's internal song identifier. |
| PUBLIC_DOMAIN | Char(5) | Values = "TRUE" or "FALSE". Indicates whether the song represented by this asset exists in the public domain. |
| PACKAGE_TYPE | VarChar(100) | Values = "SHEET" or "PACKAGE". See ASSET_TYPE. |
| ASSET_ACTION | Char(6) | Values = "new", "update", or "delete". Indicates whether this record should be added, updated, or deleted. For "update" assets, all data will be provided, not just the "changed" data. It is up to the receiving system to determine which fields and files need to be updated. |
| ASSET_VOICING | VarChar(50) | Typically, the voicing configuration of a Choral format asset, for example SATB, SSA, TTB. |
| PERFORMANCE_TIME | Number(10,0) | The performance duration of the asset in seconds. |
| EXTERNAL_REF | VarChar(80) | The identifier of the company providing the asset. Do not use. |
| DIFFICULTY_LEVEL_LOW | Number(3,2) | The relative performance difficulty of the asset. (low end of the range). |
| DIFFICULTY_LEVEL_HIGH | Number(3,2) | The relative performance difficulty of the asset. (high end of the range). |
| TEMPO | Number(5,0) | The beats per minute of the asset. |
| MINIMUM_QUANTITY | Number(9,0) | The minimum allowed purchase quantity, typically enforced on Choral format assets. |
| IMAGE_URL | VarChar(2000) | The URL of a thumbnail image of the asset, typically used for audio and video assets only. |
| TITLE_SORT | VarChar(100) | The title against which sorts should be preformed. Articles, such as "A", "An", and "The" will have been removed from titles to facilitate proper sorting. |
| SUBTITLE | VarChar(100) | Text which further claifies the musical work, such as "from the musical Annie" |
| KEY_SIGNATURE_ID | Number(9,0) | The ID of the Key Signature and Modality most closely associated with the musical work. |
| MUSIC_BRAINZ_ID | VarChar(80) | The musical work's identifier in the MusicBrainz open content music database. |
| EXPLICIT | VarChar(1) | A Y/N indicator that denotes whether an asset contains graphic material, such as profanity in lyrics. |
| PARTABLE | VarChar(1) | A Y/N indicator that denotes whether an Ensemble's parts may be sold individually. This information is only available on Ensemble assets. See ASSET_PACKAGE. |
| SMD_ID | VarChar(80) | Not currently used. |
| USERGEN_BLACK_BOX | VarChar(1) | A Y/N indicator that denotes if copyright holder is unknown at the time the arrangement is created. |
| USERGEN_ARRANGABLE | VarChar(1) | A Y/N indicator that denotes if the work is arrangable through the Usergen program |
| USERGEN_VENDOR_PRODUCT_TYPE | VarChar(50) | The type of Usergen content: usergen_original is original composition, not based on the work of some other party. usergen_arrangement_of_copyright for arrangements of copywritten work, usergen_pd for public domain arrangements usergen_arrangement_of_usergen_song for arrangements of other usergen songs |
| USERGEN_SELLER_ID | Number(38,0) | The seller Id of the arranger on ArrangeMe |
| USERGEN_AUTHORIZED_PERFORMERS | Number(38,0) | Maximumn number of performers of a given asset, 0 if unlimited. |
| USERGEN_CONTENT_PROVIDER | VarChar(50) | Which of the UserGen creation sites this asset came from |
| USERGEN_ADAPTATION_PRODUCT_ID | VarChar(100) | The product id of the Usergen asset that this asset was arranged from |
| USERGEN_ADAPTATION_VENDOR | VarChar(10) | The Usergen provider that the the adapation product id was from. |
| USERGEN_VENDOR_SONG_ID | VarChar(40) | The Usergen provider's song id |
| USERGEN_COMMISSION_OVERRIDE_RATE | NUMBER(7,6) | The Usergen arranger's comission override rate |
| USERGEN_PUBLISHER_NAME | VarChar(100) | The arranger's publisher name |
File: ASSET_ARTIST
| Column | Data Type | Comments |
|---|---|---|
| ASSET_ID | Number (10,0) | The related asset for this artist. |
| ARTIST_NAME | VarChar(80) | The name of the artist. |
| ARTIST_NAME_REV | VarChar(80) | The reversed name of the artist in the form "last, first". |
| PRIMARY | Char(1) | Values = "Y" or "N". Denotes the most significant artist associated with this asset. Only one primary artist may exist per asset. |
File: ASSET_CATEGORY
| Column | Data Type | Comments |
|---|---|---|
| ASSET_ID | Number (10,0) | The related asset for this category. |
| CATEGORY_ID | Number (10,0) | The id of the asset's related category (See the CATEGORY file.) |
File: ASSET_CONTRIBUTOR
| Column | Data Type | Comments |
|---|---|---|
| ASSET_ID | Number (10,0) | The related asset for this contributor. |
| CONTRIBUTOR_TYPE | VarChar(50) | The role the contributor plays when associated with the asset, for example "ARTIST", "ARRANGER", "EDITOR", etc. |
| CONTRIBUTOR_NAME | VarChar(80) | The name of the contributor. |
| CONTRIBUTOR_NAME_REV | VarChar(80) | The reversed name of the contributor in the form "last, first". |
| PRIMARY | Char(1) | Values = "Y" or "N". Denotes the most significant contributor associated with this asset. Only one primary contributor may exist per asset. |
| CONTRIBUTOR_NAME_SORT | VarChar(80) | The name against which the contributor should be presented in an ordered list. For example, "The Beatles" will have a value of "Beatles" for this field. |
| MUSICBRAINZ_ID | VarChar(80) | The contributor's identifier in the MusicBrainz open content music database. |
File: ASSET_HARDGOOD
| Column | Data Type | Comments |
|---|---|---|
| ASSET_ID | Number(10,0) | The ASSET_ID associated with this hardgood. |
| HAL_LEONARD_SKU | Number(8,0) | The Hal Leonard hardgood SKU. |
| SHEET | Char(5) | Values = "TRUE" or "FALSE". Indicates whether this SKU is a single song sheet hardgood. |
File: ASSET_IMAGES
| Column | Data Type | Comments |
|---|---|---|
| ASSET_ID | Number(10,0) | The ASSET_ID associated with this image. |
| IMAGE_TYPE | Number(3,0) | The type and location of the image. (See the IMAGE_TYPES file). |
| IMAGE_FILENAME | Char(200) | The image file name. |
File: ASSET_INSTRUMENT
| Column | Data Type | Comments |
|---|---|---|
| ASSET_ID | Number (10,0) | The related asset for this instrument. |
| INSTRUMENT_ID | Number (9,0) | The id of the asset's related instrument. (See the INSTRUMENTS file.) |
File: ASSET_KEYWORD
| Column | Data Type | Comments |
|---|---|---|
| ASSET_ID | Number (10,0) | The related asset for this keyword. |
| KEYWORD | VarChar(320) | The keyword value. |
File: ASSET_PACKAGE
| Column | Data Type | Comments |
|---|---|---|
| PARENT_ASSET_ID | Number (10,0) | The parent asset of the collection. |
| CHILD_ASSET_ID | Number (10,0) | The constituents (children) of the collection. |
| PART_COUNT | Number (3,0) | The number of copies to be included when the constituent is sold as a single unit. |
| PART_CODE | VarChar(10) | The id of the related instrument name. See INSTRUMENTATION_PARTS file. |
| PART_SEQUENCE | Number (3,0) | The order in which to sort the package in score sequence. |
| SCORE | Char(1) | Values = "Y" or "N". A "Y" denotes that the asset is the "score" part of the package. |
File: ASSET_PRICE
| Column | Data Type | Comments |
|---|---|---|
| ASSET_ID | Number (10,0) | The related asset for this price. |
| PRICE_TYPE_ID | Number (9,0) | |
| PRICE_TYPE_USAGE | VarChar(40) | "full", "audio-only", or "upgrade" |
| PRICE_VALUE | Number (7,2) | The price value for the given usage. |
File: ASSET_RECORDING
| Column | Data Type | Comments |
|---|---|---|
| ASSET_ID | Number (10,0) | The related asset for this recording. |
| RECORDING_ID | Number (9,0) | The unique id of the recording for this asset. |
| QUALITY_TYPE | VarChar(200) | The recording quality level available for this asset. |
File: ASSET_RELATEDGOOD
| Column | Data Type | Comments |
|---|---|---|
| ASSET_ID | Number (10,0) | The asset associated with this related good. |
| RELATED_PRODUCT | Number (10,0) | The unique identifier of the related good. |
| HL_SKU_OR_ASSET_ID | VarChar(25) | Indicates whether the value of the RELATED_PRODUCT field is a Hal Leonard SKU (a hardgood) or an Asset ID (a digital good). |
| GROUP_TYPE_ID | Number (10,0) | Denotes the type of relationship: 1 = hardgood; 2 = Voicing. |
| SHEET | Char(5) | Values = "TRUE" or "FALSE". Indicates whether the Hal Leonard SKU is a single song sheet hardgood. |
| PRIMARY_SOURCE | Char(1) | A Y/N indicator that denotes whether the main item that is related to this asset. |
| FEATURED | Char(1) | A Y/N indicator that denotes whether the item is closely related. |
File: ASSET_RENDERING
| Column | Data Type | Comments |
|---|---|---|
| ASSET_ID | Number (10,0) | The related asset for this keyword. |
| RENDERING_TYPE | VarChar(20) | The type of rendering available for this asset. Possible values could be: “pdf”, “musicxml”, “scorch”, etc. |
| RENDERING_FILENAME | VarChar(80) | The filename value. Currently this field will only be populated for scorch rendering types. |
File: ASSET_SERIES
| Column | Data Type | Comments |
|---|---|---|
| ASSET_ID | Number (10,0) | The related ASSET for this series. |
| SERIES_ID | Number (10,0) | The related SERIES for this asset. |
File: ASSET_SKILL
| Column | Data Type | Comments |
|---|---|---|
| ASSET_ID | Number (10,0) | The related asset for this price. |
| SKILL_ID | Number (9,0) | The skill. (See the SKILLS file). |
| SEQUENCE | Number (9,0) | The relative order of this asset in the sequence of assets to achieve a skill. |
File: ASSET_USERGEN_MEDLEY_ASSET
| Column | Data Type | Comments |
|---|---|---|
| ASSET_ID | Number (10,0) | The medley Usergen asset |
| SONG_CATALOG_ID | VarChar (11) | The system generated id linking Usergen medley and HL song number |
| HL_SONG_ID | Number (6,0) | Hal Leonard's internal song identifier. |
| SEQUENCE | Number (9,0) | The relative order of the somgs in the medley |
| SONG_TITLE | Number (9,0) | The song's title |
File: ASSET_USERGEN_PART
| Column | Data Type | Comments |
|---|---|---|
| ASSET_ID | Number (10,0) | The parent asset id of this collection. |
| PART_ID | Number (9,0) | The asset id of this part. |
| PART_SEQ | Number (3,0) | The order in which to sort the package in score sequence. |
| PART_NAME | Number (9,0) | The name of the part asset. |
File: ASSET_WRITER
| Column | Data Type | Comments |
|---|---|---|
| ASSET_ID | Number (10,0) | The related asset for this writer. |
| WRITER_NAME | VarChar(80) | The name of the writer. |
| WRITER_NAME_REV | VarChar(80) | The reversed name of the writer in the form "last, first". |
| PRIMARY | Char(1) | Values = "Y" or "N". Denotes the most significant writer associated with this asset. Only one primary writer may exist per asset. |
File: CATEGORY
| Column | Data Type | Comments |
|---|---|---|
| CATEGORY_ID | Number (10,0) | A number that uniquely identifies each category. |
| CATEGORY_NAME | VarChar(80) | The classification to which an asset may belong, for example "Pop", "Rock", "Jazz", etc. |
File: CONTRIBUTOR_BIOGRAPHY
| Column | Data Type | Comments |
|---|---|---|
| BIOGRAPHY_ID | Number (9,0) | System generated unique id. |
| BIOGRPAHY | VarChar(4000) | The textual description of the biography. May contain HTML characters. |
| FILE_NAME | VarChar(80) | The file name of a static image or video clip. |
| FILE_PATH | VarChar(200) | The URL location of the image or video clip. |
| FILE_TYPE | VarChar(10) | The type of file, either JPG (static image) or FLV (Flash video clip). |
| CONTRIBUTOR_TYPE | VarChar(50) | The role the contributor plays when associated with the asset, for example "ARTIST", "ARRANGER", "EDITOR", etc. |
| CONTRIBUTOR_NAME | VarChar(80) | The name of the contributor. |
| CONTRIBUTOR_NAME_REV | VarChar(80) | The reversed name of the contributor in the form "last, first". |
| CONTRIBUTOR_NAME_SORT | VarChar(80) | The name against which the contributor should be presented in an ordered list. For example, "The Beatles" will have a value of "Beatles" for this field. |
| PRIMARY | Char(1) | Values = "Y" or "N". Denotes the most significant contributor associated with this asset. Only one primary contributor may exist per asset. |
| MUSICBRAINZ_ID | VarChar(80) | The contributor's identifier in the MusicBrainz open content music database. |
File: CONTRIBUTOR_ROLES
| Column | Data Type | Comments |
|---|---|---|
| ROLE_ID | Number (10,0) | A number that uniquely identifies each role. |
| CONTRIBUTOR_ROLE | VarChar(50) | The name of the role a contributor may play, for example "ARTIST", "COMPOSER", etc. |
File: COUNTRY
| Column | Data Type | Comments |
|---|---|---|
| COUNTRY_CODE | VarChar(10) | The ISO country code. |
| COUNTRY_NAME | VarChar(100) | The ISO country name. |
File: FORMAT
| Column | Data Type | Comments |
|---|---|---|
| FORMAT_SHORT_NAME | VarChar(10) | The unique identifier of the notational format. |
| FORMAT_NAME | VarChar(80) | The notational format an asset may have. |
File: IMAGE_TYPES
| Column | Data Type | Comments |
|---|---|---|
| IMAGE_TYPE_ID | Number (3,0) | System generated unique id. |
| IMAGE_TYPE | VarChar(20) | A short description of the type of image and its context. |
| IMAGE_TYPE_PATH | VarChar(200) | The URL location of the images of this type. |
File: INTRUMENTATION_PARTS
| Column | Data Type | Comments |
|---|---|---|
| PART_CODE | VarChar(10) | The unique identifier of the instrument part name. |
| PART_NAME | VarChar(100) | The instrument part name. |
File: INSTRUMENTS
| Column | Data Type | Comments |
|---|---|---|
| INSTRUMENT_ID | Number(9,0) | The unique identifier of the instrument. |
| INSTRUMENT_NAME | VarChar(320) | The instrument name. |
| INSTRUMENT_TYPE | Char(1) | An indicator "I" if this is a single instrument like guitar, or "P" if it a performance group like Cello Duet |
File: KEY_SIGNATURES
| Column | Data Type | Comments |
|---|---|---|
| KEY_SIGNATURE_ID | Number (9,0) | System generated unique id. |
| MODALITY | VarChar(20) | "MAJOR" or "MINOR". |
| KEY_SIGNATURE | VarChar(320) | The key signature description. |
File: GROUP_TYPES
| Column | Data Type | Comments |
|---|---|---|
| GROUP_TYPE_ID | Number(10,0) | The unique identifier of the group type (aka product association). |
| GROUP_TYPE | VarChar(100) | The name of the product association type, for example "Hardgood". |
File: QUALITY_TYPES
| Column | Data Type | Comments |
|---|---|---|
| QUALITY_TYPE_ID | Number (9,0) | System generated unique id. |
| QUALITY_TYPE_ABBR | VarChar(20) | A short caption of the quality. |
| QUALITY_TYPE | VarChar(200) | A long description of the quality. |
File: RECORDINGS
| Column | Data Type | Comments |
|---|---|---|
| RECORDING_ID | Number (9,0) | System generated unique id. |
| RECORDING_YEAR | Number (4,0) | The year in which the recording was made. |
| STUDIO_ID | Number (9,0) | The identifier of the studio where the recording was made. (See RECORDING_STUDIOS.) |
| SUP_FILE_NAME | VarChar (80) | The path to any supplemental content for the recording |
| SUP_LINK_NAME | VarChar (80) | The display name of the link |
| RECORDING_TITLE | VarChar (100) | The title of the recording |
| DESCRIPTION | VarChar (4000) | The description of the recording |
| VOICING | VarChar (80) | The voicing of the recording |
File: RECORDING_STUDIOS
| Column | Data Type | Comments |
|---|---|---|
| STUDIO_ID | Number(9,0) | The unique identifier of the recording studio. |
| STUDIO_NAME | VarChar(320) | The name of the recording studio. |
File: SELLABLE_COUNTRY
| Column | Data Type | Comments |
|---|---|---|
| ASSET_ID | Number(10,0) | The ASSET_ID associated with this ISO country code. |
| COUNTRY_CODE | VarChar(10) | The ISO country code. |
File: SERIES
| Column | Data Type | Comments |
|---|---|---|
| SERIES_ID | Number(10,0) | The unique identifier of the product series. |
| SERIES | VarChar(100) | The name of the product series, typically for Choral format assets. |
File: SKILLS
| Column | Data Type | Comments |
|---|---|---|
| SKILL_ID | Number (9,0) | System generated unique id. |
| SKILL | VarChar(40) | The skill name. |
| SKILL_PARENT_ID | Number (9,0) | The identifier of any skill that the given skill is a part of. |
